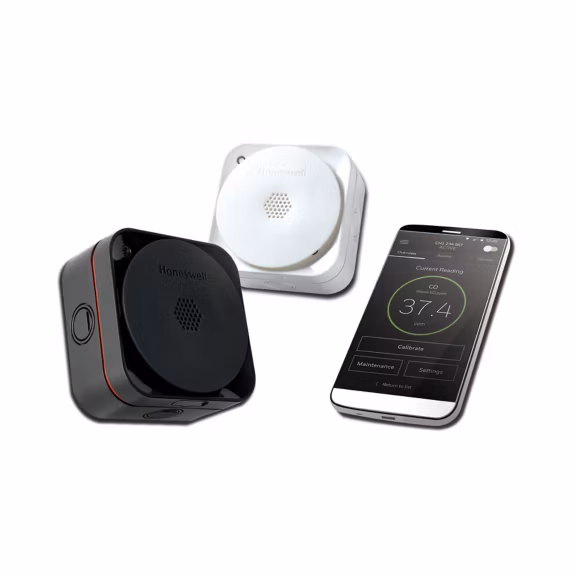

Sensepoint Gas Sensor with Junction Box

The Honeywell Sensepoint Gas Sensor with Junction Box is a cost-effective gas detection solution for monitoring flammable, toxic, and oxygen gases in indoor and outdoor environments, including potentially explosive atmospheres with ATEX-approved models. Supplied with a pre-wired universal junction box, it supports convenient installation using conduit or armoured cable and provides reliable gas monitoring for commercial buildings, energy, and manufacturing applications.

Brand: HONEYWELL
Category:
Buy more & save more!
Buy 20+ items → 10% OFF
Buy 30+ items → 15% OFF
Buy 40+ items → 20% OFF

👉 Login to get an extra 5% discount.

Description

The Honeywell Sensepoint Gas Sensor with Junction Box combines dependable gas detection with flexible installation and simplified electrical connections. The pre-wired junction box features a hinged lid for easier wiring and includes M20, 3/4-inch NPT, and 1/2-inch NPT clearance entries with approved stopping plugs and an earth continuity plate. The Sensepoint range is available for flammable, toxic, and oxygen gas detection, with ATEX-approved versions suitable for potentially explosive atmospheres. The sensor provides an mV bridge signal output, IP65/IP67 protection, 20-minute warm-up time, and operation from -30°C, making it suitable for commercial buildings, energy, and manufacturing environments.

SpecificationDetails
BrandHoneywell
Gas DetectionFlammable, Toxic, Oxygen
Weight190 g
Humidity RangeContinuous: 20 to 90% RH; Intermittent: 10 to 99% RH (Non-Condensing)
Maximum Pressure110 kPa
Warm Up Time20 min
Signal OutputmV Bridge
Conduit EntriesM20, 3/4 in NPT
Minimum Temperature-30°C
Ingress ProtectionIP65, IP67
Power Consumption700 mW
Operating Voltage2.9 to 3.5 V
Filter IncludedYes
Batteries IncludedNo
Batteries RequiredNo
Applications / IndustriesCommercial Buildings, Energy, Manufacturing
Junction BoxPre-wired universal junction box
Junction Box Entries1 × M20, 1 × 3/4 in NPT, 1 × 1/2 in NPT
ATEXApproved versions available for potentially explosive atmospheres
Standard Accessories3 × approved stopping plugs, earth continuity plate, instruction manual, factory-set gas sensor
